Custom Rivet Machines

At Chicago Rivet & Machine Co. we can design and build custom riveting machines that are used in virtually any industry. We specialize in delivering turn key, ready to run riveting equipment, with integrating PLC systems, including complete automation. Our machines are offered in pneumatic, hydraulic, or with multiple settings, and varied rivet diameter and length dimensions.

We also offer technical support and engineering capabilities. Contact Chicago Rivet & Machine Co. to learn more.

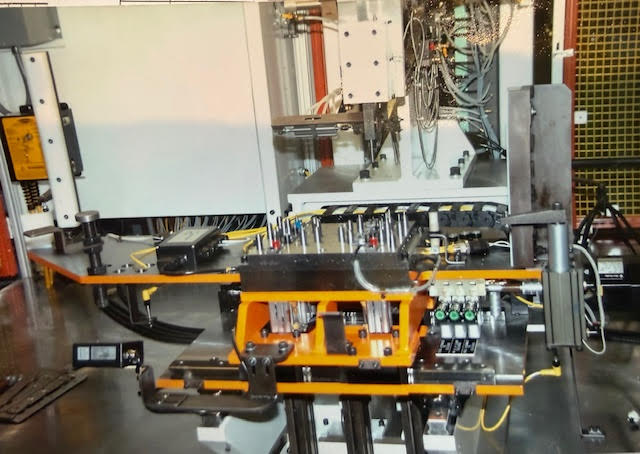

Model AM2 Assembly Machine to Attach Air Bag to Dashboard With 22 Rivets

Features

  1. X/Y 24 position servo-driven fixture.
  2. M100 pneumatic/hydraulic riveter with vibratory and bulk feeders.
  3. Bad rivet sorter.
  4. Rivet in part detection.
  5. Auto part clamping.
  6. Perimeter guarding with light curtain.
  7. PLC with HMI controls.

Model MHR Assembly machine to attach handle to puddy knifes with male/female rivets and install eyelet.

Features

  1. 8 position rotary dial index table.
  2. Part sensing station.
  3. Male/female insertion station.
  4. Eyelet load station.
  5. Eyelet clinch station.
  6. Label station.
  7. Ejection station.
  8. PLC with HMI controls.
  9. Perimeter guarding (not shown).

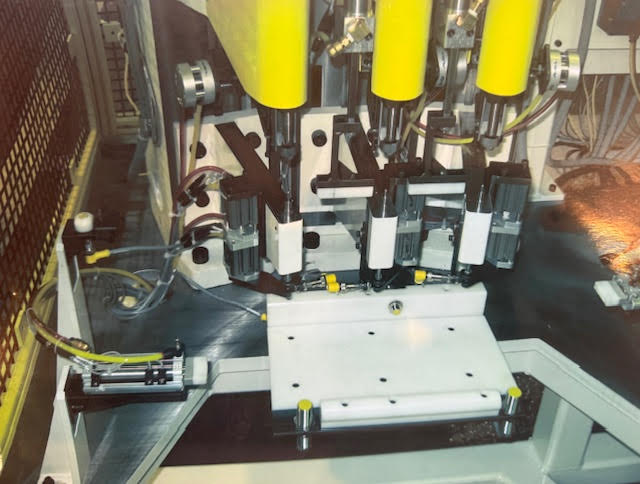

Model MHR Assembly machine to attach slide tracks to bin.

Features

  1. 3 model 116 riveters.
  2. 3 rivet track sensors.
  3. 3 (2) position anvil pins.
  4. Part location sensors.
  5. 2 part clamp/retainers.
  6. Work light and oscillating fan.
  7. Perimeter guarding with light curtain.
  8. PLC with HMI controls.

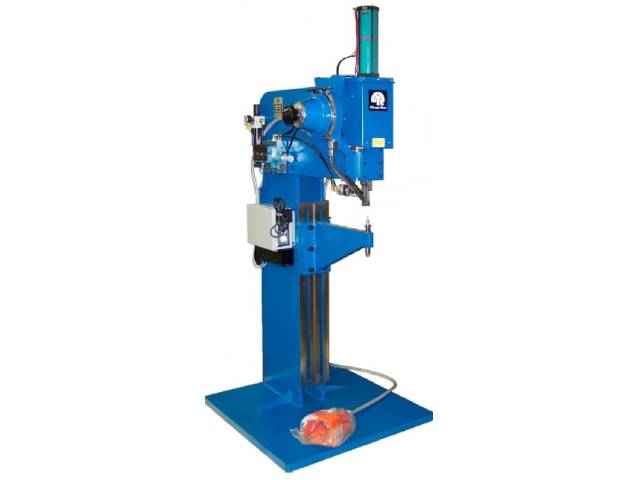

M100 Custom Pneumatic/hydraulic Rivet Setting Machine​

Features

  1. M100 Pneumatic/Hydraulic Riveter (Direct Drive)​
  2. River capacity –.12 diameter steel semi tubular to .312 diameter stainless steel solid.​

Benefits

  1. Fewer moving parts and wear points.​
  2. Faster cycle time than lever type pneumatic machines.​
  3. Lower maintenance.​
  4. Designed specifically for customers application

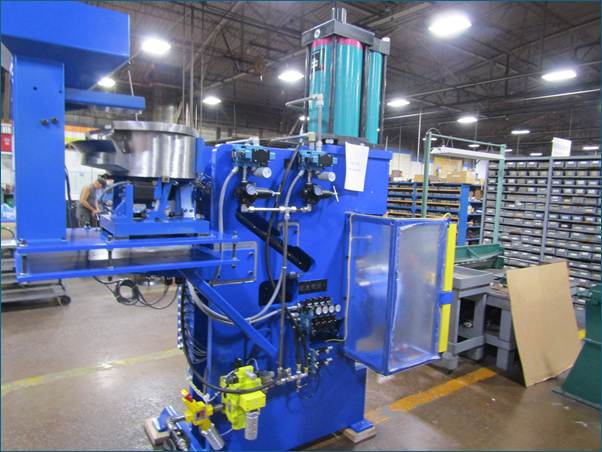

M200 Barrel Strap Rivet Setting Machine​

General Specifications and Description​

Machine to assemble (2) .276 diameter solid steel rivets into a metal barrel hoop while stamping a marking on the rivet heads.​

Features

  1. Single drive, 35 Ton pneumatic/ hydraulic rivet setting machine.​​
  2. Machine size 59” wide x 94” deep x 108” high.​
  3. Electrical input – 115/60/1.​
  4. Pneumatic input – minimum of 70 psi.​
  5. Cycle time approx. 3 seconds not including load/unload time. With estimated load/unload time approx. 6 seconds (10 PPM).​
  6. Capable of two different width hoops.​
  7. Perimeter guarding with safety light curtain.​
Request Information

Custom Riveting Machines Portfolio - Examples of our Work

Custom Riveting Machine Capabilities

General Riveting Machine Capabilities
  • Fabrication and Assembly
  • Consulting
  • Design
  • Machine can be sent back to us for re-build evaluation/refurbish
Industry Focus
  • Apparel
  • Appliance
  • Automotive
  • Construction
  • Electrical
  • Electronics
  • Fasteners/Hardware
  • Food Processing
  • Furniture
  • Medical
  • Optical
  • Packaging
Configuration
  • Multiple Cluster Heads
  • Adjustable Dual Heads
Rivet Machine Style
  • Automatic
  • Continuous
  • Flexible
  • High Speed
  • Product can be reconfigured, expanded, or moved as needed
  • Turnkey
Options
  • Custom Fixtures
  • Expanded Throat Depth
  • Hydraulic
  • Load Compensating Device
  • Mechanical
  • Pneumatic
  • Rivet Sensing
  • Offset Tooling
  • PLC
Engineering Capabilities

  • Computer Aided Design (CAD)
  • Electrical
  • Hydraulics
  • Mechanical
  • Pneumatic
Additional Services Provided

  • Technical Support
Intended Application

  • Aircraft Components
  • Disc/Drum Brakes
  • Electrical Contacts
  • Hard Hats
  • Home & Garden Pulleys
  • Safety Glasses
  • Tool Boxes
  • Welding Shields
