Custom Riveting Machine Profile Images

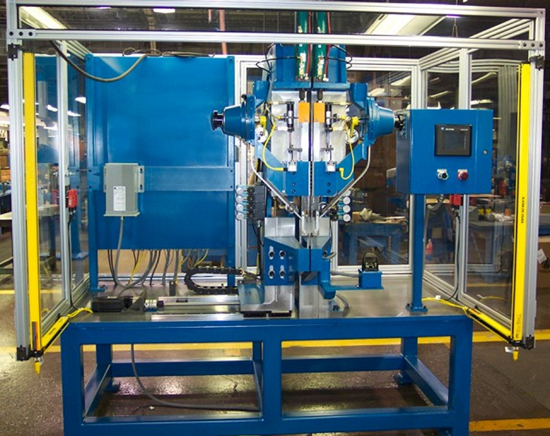

Custom Manufactured Riveting Machine For Aviation Industry

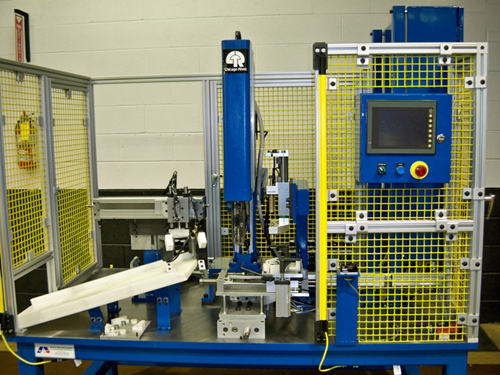

 Turnkey Custom Riveting Machine Solutions At Chicago Rivet

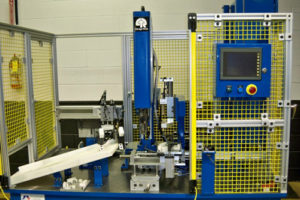

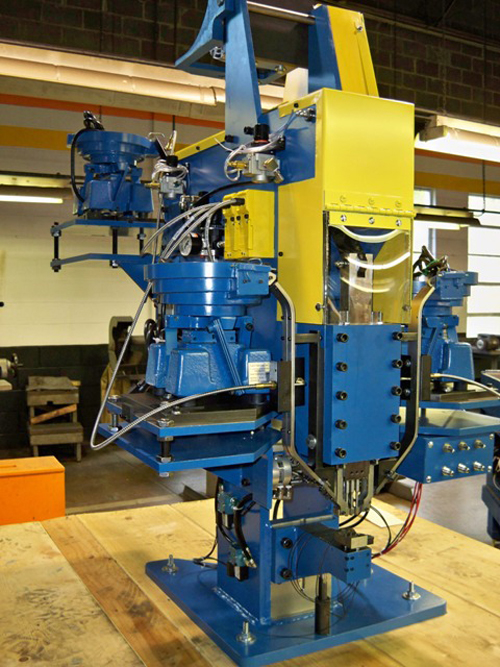

 Custom manufactured riveting machine with vibratory hopper built to assemble the end clip of a tape measure, fastening multiple rivets at one time

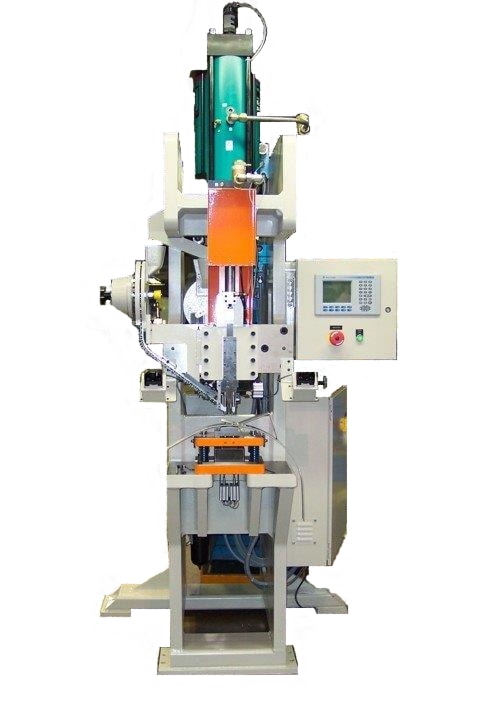

 C-frame unit with pneumatic/hydraulic drive and PLC controls to provide real-time force sensing and part presence monitoring. This machine sets 2 stainless rivets for a heavy duty truck application.

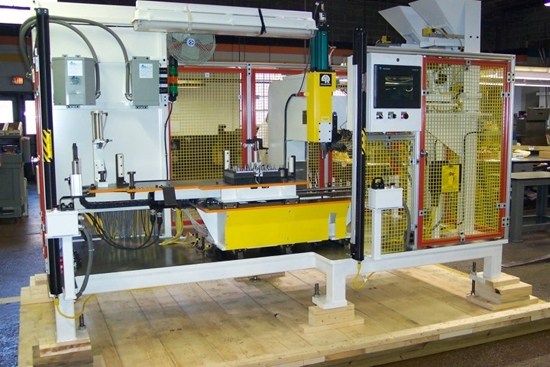

 Custom Manufactured Riveting Machine For Automotive Industry

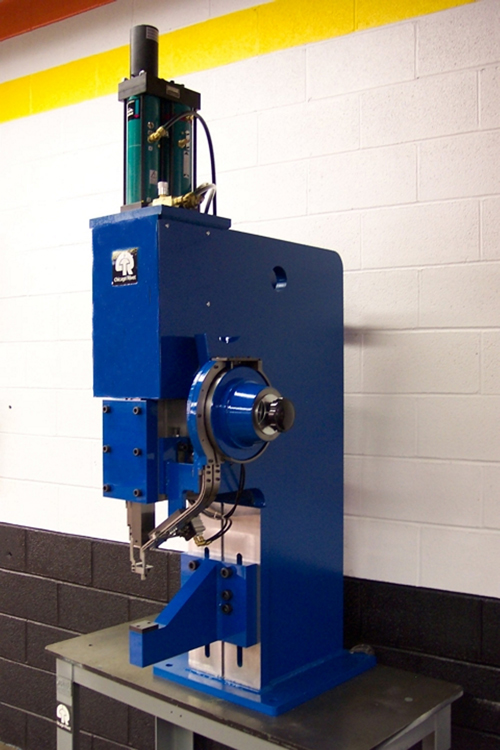

 Custom hydraulic/pneumatic riveting machine built for an HVAC application

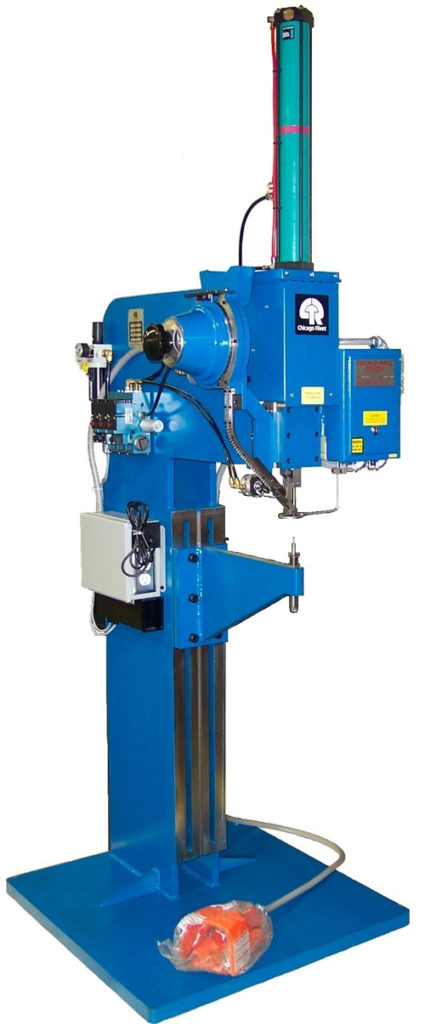

 Custom Hydraulic Over Pneumatic Riveting Machine

 Custom Manufactured Riveting Machine For The Cutlery Industry

Custom riveting equipment for cutlery industry with high volume output requirements

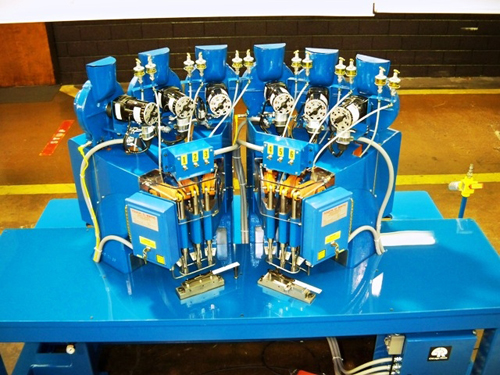

High Volume Production Custom Riveting Machine for Cutlery Industry Six air-powered riveting heads for setting cutlery/compression-type rivets. Left bank of heads (Ref. 1,2 & 3, click image to enlarge) installs and slightly flares the ends of three tubular rivets. This allows the operator to remove the sub-assembled cutlery, with rivets in place, invert part and place in locating fixture under right bank of heads (Ref. 4,5 & 6, click image to enlarge). The heads are cycled to feed and insert the three solid rivets to complete the assembly. Unit is equipped with separate foot switch controls for each bank of heads along with safety probe guarding of riveting areas….READ MORE

Custom Manufactured Riveting Machine for the Electrical Industry

Custom Manufactured Riveting Machine for the Electrical IndustryThis custom manufactured riveting machine was designed for the assembly of electrical switch components. This unit features two pneumatic model 173 riveters, mounted on a steel table. The design allows for manual adjustment of each rivet head to accommodate riveting centers. Manually operated fixture blocks were also included to enable the operator to place the fixture in riveting position, and manually rotate the fixture to set rivets (2 per cycle) at required locations….READ MORE

Custom Cold Headed Part Images

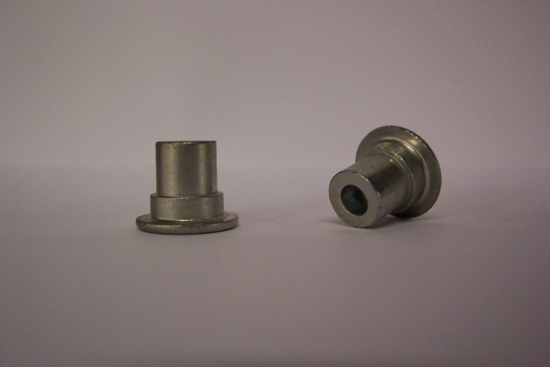

Custom Shoulder Rivet

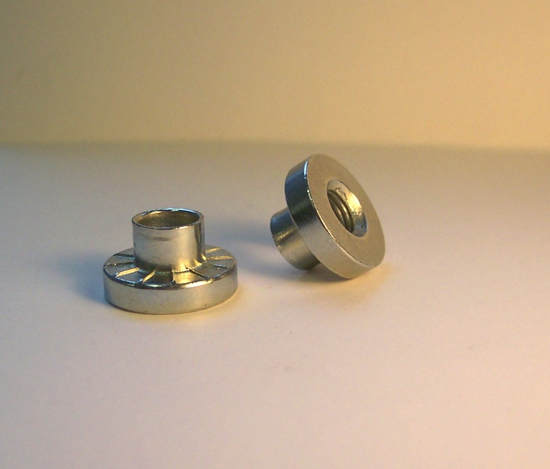

 Tapped Rivet With Ribs

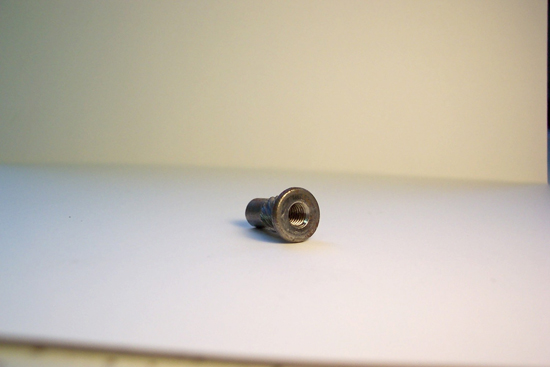

 Tapped Hole With External Diamond Knurl

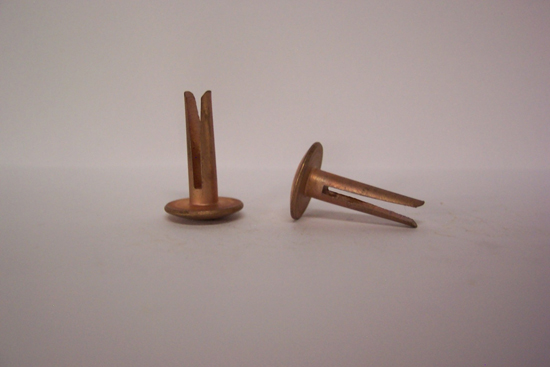

 Custom Split Rivets

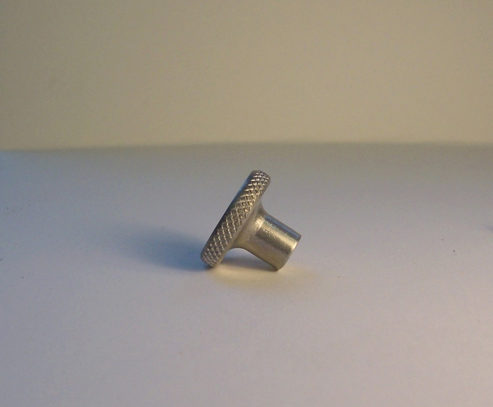

 Drawer Pull Rivet

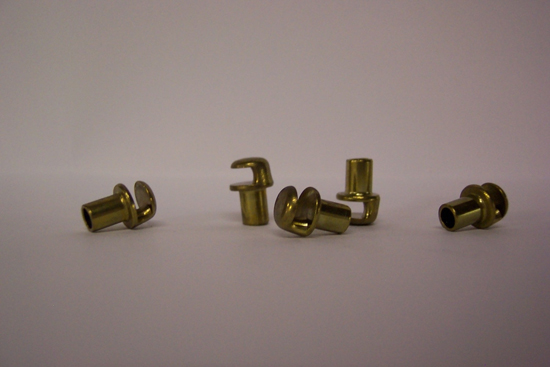

 Brass Studs

 Drilled-tapped-knurled cold headed part

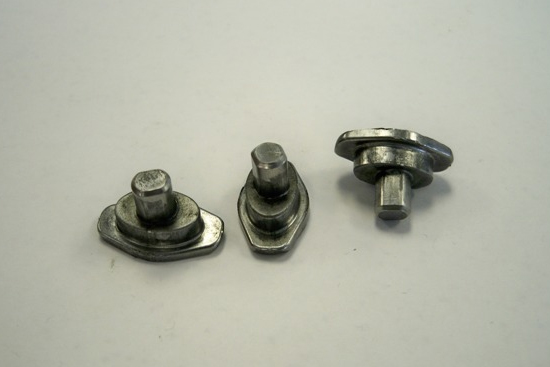

 Oblong head shoulder rivet

Cold Headed Aluminum Stud Terminal for Electronic Industry

Cold Headed Aluminum Stud Terminal for Electronic Industry The product highlighted here was designed for use as a threaded collar stud for an electronics application. Composed of aluminum, it featured a .406” head diameter, and .040” head height. The body/shoulder was .170” in diameter and .453” in length, while the shank/tenon had a diameter of .314”/.117”, and a length of .122”/1.116”, with tolerances of ±.002”….READ MORE

Cold Headed Oblong Shoulder Rivet for Automotive Clutch

Cold Headed Oblong Shoulder Rivet for Automotive ClutchThis oblong shoulder rivet was a special high volume component; it was designed with an elongated head, an oval shoulder, and an off-set shank. The customer supplied engineering drawing called out dimensions of .945” head diameter, and .075” head height, .630” body/shoulder diameter, and .159” body/shoulder length….READ MORE
